Cosmetics Making Machine Shampoo Soap Cream Vacuum Homogenous Emulsifier
Description of theVacuum Homogenous Emulsifier
Vacuum homogenizing emulsifier is mainly used for heating and dissolving materials, homogenizing emuisification and vacum defoaming. It is the preferred equipment for middle and high-grade emulsion cream products. The whole equipment includes emulsifying pot, water phase pot, oil phase pot, operating platform, control system and so on. The vacuum mixing pot produced by our company is specially designed and manufactured for pharmaceutical, chemical, cosmetics, food, beverage and other industries. The effect of the frame mixing method is unique, and the mixing blades can also be manufactured according to customer requirements.
Technical parameter of theVacuum Homogenous Emulsifier
| Model | Capacity | Homogenizer motor | Agitator | Outside dimension | total power | limit vacuum | |||||
| KW | r/min | KW | r/min | Length | Width | Height | Steam heating | Electric heating | |||
| 10 | 10L | 0.75 | 0-3000 |
0.37 | 0-63 |
1350 | 580 | 1200/1800 | 3 | 6 | -0.09 |
| 20 | 20L | 0.75-1.1 | 0.55 | 1400 | 650 | 1450/2000 | 3 | 6 | |||
| 50 | 50L | 2.2-5.5 | 1.1 | 2185 | 2500 | 1920/2650 | 9 | 18 | |||
| 100 | 100L | 3-7.5 | 1.5 | 2385 | 2600 | 1850/2900 | 13 | 30 | |||
| 200 | 200L | 4-9 | 2.2 | 2685 | 3000 | 2380/3240 | 15 | 40 | |||
| 300 | 300L | 4-11 | 2.2 | 3000 | 3400 | 2500/3600 | 18 | 49 | -0.085 | ||
| 500 | 500L | 5.5-11 | 4 | 3400 | 3500 | 2900/3900 | 24 | 63 | -0.08 |
||
| 1000 | 1000L | 7.5-15 | 5.5 | 3600 | 4200 | 3300/4600 | 30 | 90 | |||
| 2000 | 2000L | 11-18.5 | 7.5 | 4200 | 4800 | 3800/5400 | 40 | - | |||
Working principle of theVacuum Homogenous Emulsifier
It means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several phases to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the mechanical effect. By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 100 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
Main Features of theVacuum Homogenous Emulsifier
1) The triple mixing adopts the imported frequency converter for speed adjustment,which can meet different technological demands.
2) The homogenization structure made through German technology adopts the imported double-end mechanical seal effect.
3) The maximum emulsifying rotation speed can reach 4200 rpm and the highest shearing fineness can reach 0.2-5um.
4) The vacuum defoaming can make the materials meet the requirement of being aseptic .
5) The emulsifying pot lid can adopt lifting system ,easy to clean and the cleaning effect is more obvious,the emulsifying pot can adopt tilt discharge.
6) The pot body is welded by imported three-layer stainless steel plate.
7) The tank body and the pipes adopt mirror polishing,which fully conforms to GMP requirements.
8) The heating modes mainly include steam heating or electric heating to ensure the control of the whole machine is more stable,the electric appliances adopt imported configurations,so as to fully meet the internal standards.
Details of theVacuum Homogenous Emulsifier
Siemens motor:
Delta inverter:

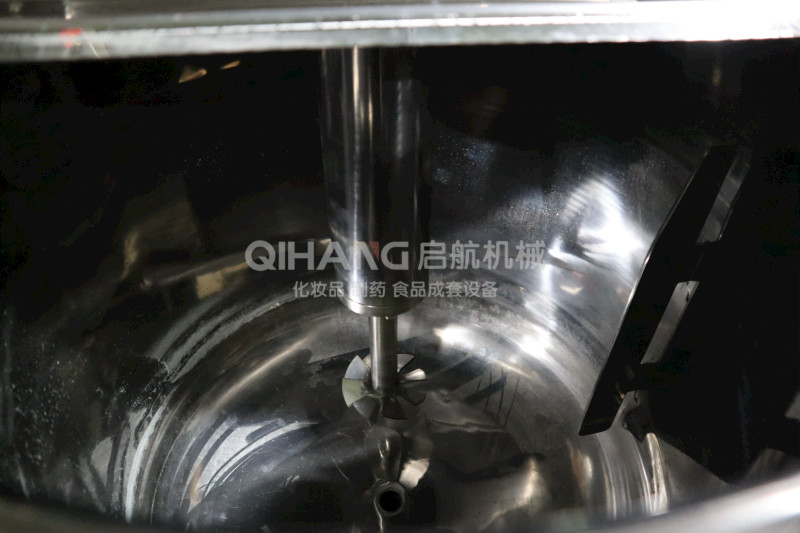

High shear homogenization:

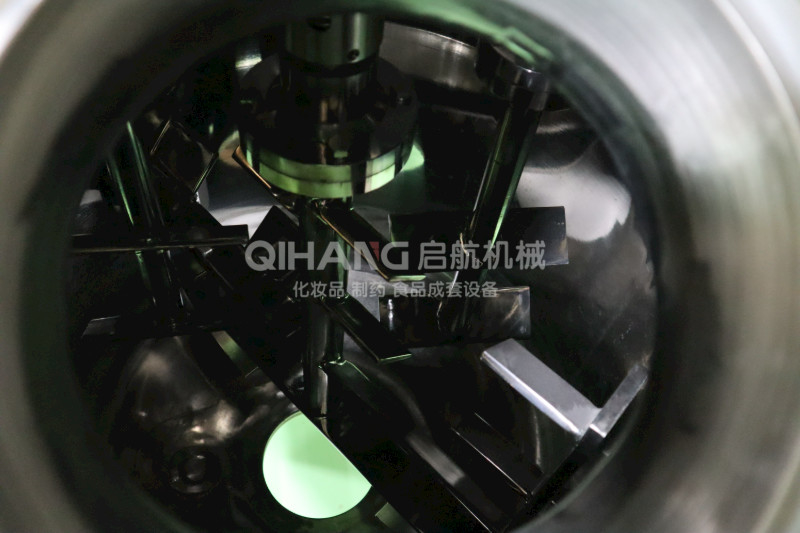

Mixing part (Material: SUS316, GMP standard):
Application of theVacuum Homogenous Emulsifier
