Подробная информация о продукте:
|
| Сила: | 15 кв | Дополнительные возможности: | Вакуум, однородный |
|---|---|---|---|
| Напряжение тока: | Подгонянный к требованиям | Ключевые пункты продажи: | автоматический |
| Тип продукта: | Фармацевтическая продукция, косметики, еда, етк | Особенность: | Прочный |
| Высокий свет: | машина шампуня проводника 15kW косметическая делая,Вакуумируйте смешивая делая эмульсию косметическую делая машину,косметическая делая машина 350L |
||

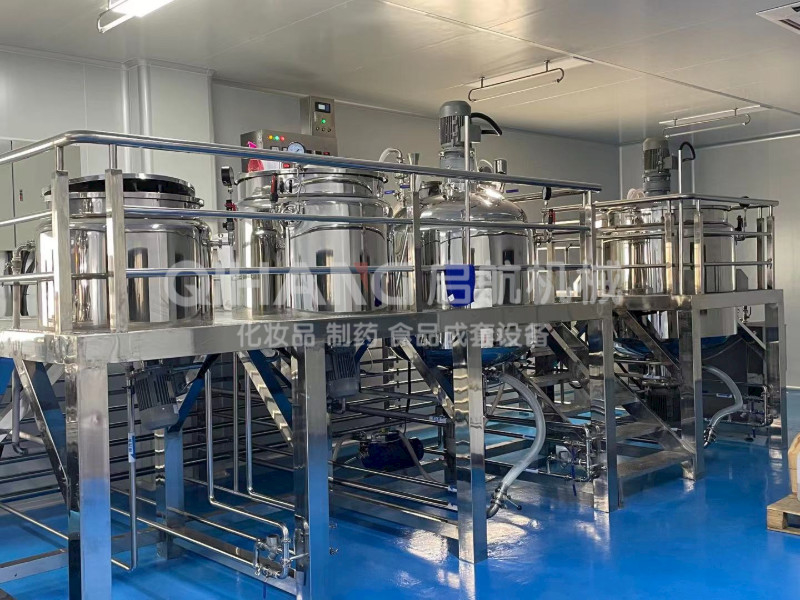

Conditioner Shampoo Shower Gel Product Line Equipment Vacuum Mixing Emulsifying
Description:
Vacuum emulsifying machine, high shear homogenizer, cosmetic cream mixer means the material in a vacuum state, the use of high-shear emulsifier efficient, rapid and evenly distributed one phase or multiple phase to another phase, and each phase under normal circumstances (such as oil and water phase) are mutually exclusive.
Feature:
1.high sanitary standard manufacturing
2.internal surface mirror polished
3.agitation group consisting of two slow agitators and one fast agitator
4.double speed slow agitators(stepless speed variation as optional)
5.double speed fast agitators(stepless speed variation as optional)
6.mechanical seal of agitation groups
7.lifting cover system
8.tilting vessel
9.body and agitators made of SS AISI 316L
10.internal pressurization for discharge and inertization
11.SS AISI 304jacket
12.cover for thermal insulation made of SS tank in tank
13.vacuum group
14.heating station
15.sterilizing filter installed on the vacuum-breaking device
16.cleaning balls
17.embedded CIP group
18.product temperature check by means of Pt 100 probe,special sheath ,close to the side
19.buttons or PLC controlled process functions
20.electronic weighing system..
Specification:
1.1 |
Volume |
Overall volume:350L;Working Volume:300L |
||||||
1.2 |
Heating |
Electric heating |
||||||
1.3 |
Basic Structure |
Three layers,the cover can be lifting ,dumping system,the blender is bidirectional, Top homogenizing;water cooling - heating coat,Insulation coat |
||||||
1.4 |
Tank |
Material contact later:SUS316L;Thickness:6mm; Jacket 6mm; Outer:SUS304, Thickness:2.5mm |
||||||
1.5 |
Cover |
Material filter,Vacuum Pressure meter,Vacuum Exhaust Valve,Vacuum Port, sight glass light,Vision window,inlet, sight glass with wiper and bulb, rotary CIP heads, 10 liters hopper;Vacuum water pump unit; |
||||||
1.6 |
agitator |
scraped |
||||||
Stirring coefficiency: |
Stirrer motor:2.2KW,Speed:0~63R/M; |
|||||||
1.7 |
Homogeneous Way |
Installation,internal circulation; |
||||||
Homogeneous |
Motor Power 7.5KW,Rotating speed 0-3600R/M |
|||||||
Processing |
Rotor and Stator in Wire cutting,assembled after polishing |
|||||||
1.8 |
sealing |
Adopting burgmann Machinery Seal,Japan NSK Rolling Bearing; |
||||||
1.9 |
polishing |
In&outside hygiene grades,conforming GMP standard |
||||||
