5 l 15 kw化妆品制造机护手霜均质ous Emulsifying Mixer

Body Lotion Hand Cream Homogenous Emulsifying Mixer

Description:

• The main pot is composed of the cut-off mixing pot, cut-off mixer unit, circulating system and the stirring system etc.

• The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.

• The material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, fold. Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material. The ex-circulating system can make the homogenizing more strong. The material within the pot can be give off only under the state of change direction of the control valves.

• The temp controller on operation panel can adjust the temp of the homogenizer pot; The homogenizer stirring and the blade stirring cab be used simultaneously or dividedly; The homogenizer stirring time can be set by the custom according to the different material. After finished the whole procession please rise the pot cover for the clearing.

Performance & feature:

Manufacturer	QIHANG
PN	5L vacuum emulsifying mixer
Capacity	Design volume: 6L, working capacity:5 L
Kettle Cover	Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
Mixing pot	Material		Inner layer: SUS316L thickness: 3mm
			Middle layer: SUS304 thickness: 2mm
			Outside layer: SUS304 thickness:2mm
	configuration		Bottom material exhaust, size: 1.5”
			Temp. sensor (0-199℃)
			Electrical heating: 2kw, cooling water inlet
Stirring system	Homogenizer	1.Material: SUS316L; standard homogenizer 2. Power: 1.1 kw/380/50Hz; RPM: 0--2800R/Min
	Stirring scrap and middle stirring	Material: SUS316L,Scrap material: PTFE
		1. Stirring scrap and middle stirring use the same motor 2,Power:0.75 kw/380V/50Hz;RPM:0~86r/min(Frequency control) 3. Stirring scrap and middle stirring rotating the opposite direction
		Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system	1. Vacuum pump: water recycle, power 0.37kw/380V/50Hz 2. With pressure sensor (during vacuum condition, hydraulic can not open)
Heating method	Jacket electrical heating
Exhaust method	Electric doom and bottom discharge or positive pressure discharge material
Pressure	Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box	SUS304 , 1.2mm thickness
Dimension	1400mm×600mm×1900~2400 mm
	Shelf is SS, platform with raised platform and SS guardrail
Spare parts	One year spare parts and tools
Guarantee	One year
Using life	More than 15 years

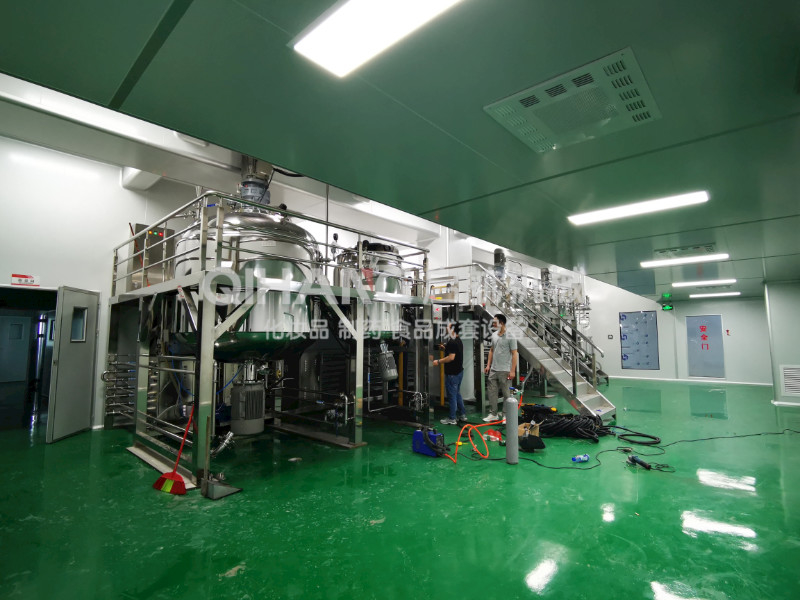

Projec Cases:

乳化剂并管理一:真空均质高shear liquid detergent mixers, reverse osmosis ion water devices, various water injection, liquid and ointment semi-automatic and automatic filling production lines, round and flat bottles automatic and semi-automatic labeling machines, perfume whole-set production lines, laboratory equipment, flow lines, etc.
