Product Details:
|
| Power: | 15 KW | Additional Capabilities: | Vacuum, Homogeneous |
|---|---|---|---|
| Voltage: | Customized To Requirements | Key Selling Points: | Automatic |
| Product Type: | Pharmaceuticals, Cosmetics, Food, Etc | Feature: | Durable |
| High Light: | Daily Supplies Cosmetic Making Machine,2.2KW Cosmetic Making Machine,300L Cosmetic Making Machine |
||

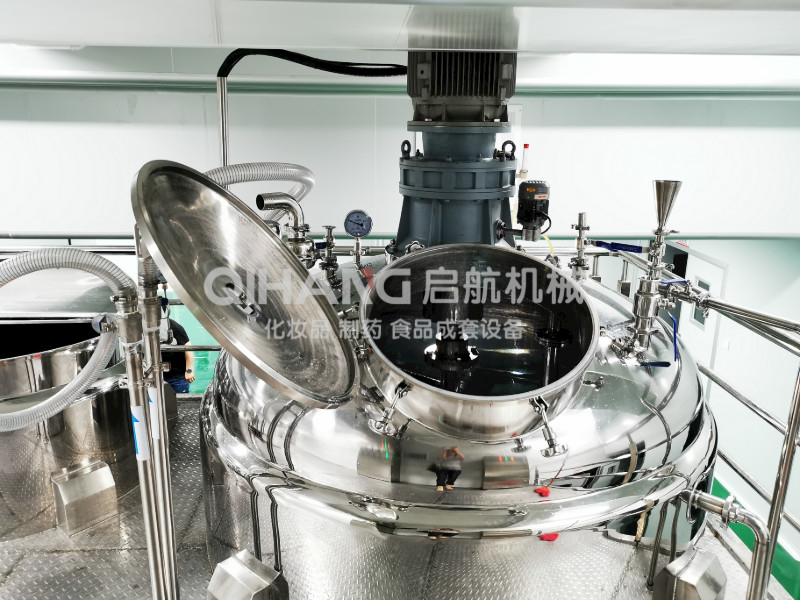

Daily Supplies Toothpaste Shower Gel Lotion Vacuum Emulsifier
Description:
Vacuum emulsifying machine, high shear homogenizer, cosmetic cream mixer means the material in a vacuum state, the use of high-shear emulsifier efficient, rapid and evenly distributed one phase or multiple phase to another phase, and each phase under normal circumstances (such as oil and water phase) are mutually exclusive.
Feature:
1.high sanitary standard manufacturing
2.internal surface mirror polished
3.agitation group consisting of two slow agitators and one fast agitator
4.double speed slow agitators(stepless speed variation as optional)
5.double speed fast agitators(stepless speed variation as optional)
6.mechanical seal of agitation groups
7.lifting cover system
8.倾斜的船
9.body and agitators made of SS AISI 316L
10.internal pressurization for discharge and inertization
11.SS AISI 304jacket
12.cover for thermal insulation made of SS tank in tank
13.vacuum group
14.heating station
15.sterilizing filter installed on the vacuum-breaking device
16.cleaning balls
17.embedded CIP group
18.product temperature check by means of Pt 100 probe,special sheath ,close to the side
19.buttons or PLC controlled process functions
20.electronic weighing system..
Specification:
1.1 |
Volume |
Overall volume:350L;Working Volume:300L |
||||||
1.2 |
Heating |
Electric heating |
||||||
1.3 |
Basic Structure |
Three layers,the cover can be lifting ,dumping system,the blender is bidirectional, Top homogenizing;water cooling - heating coat,Insulation coat |
||||||
1.4 |
Tank |
物质接触后:SUS316L;厚度:6毫米;杰克et 6mm; Outer:SUS304, Thickness:2.5mm |
||||||
1.5 |
Cover |
Material filter,Vacuum Pressure meter,Vacuum Exhaust Valve,Vacuum Port, 窥镜光,Vision window,inlet, sight glass with wiper and bulb, rotary CIP heads, 10 liters hopper;Vacuum water pump unit; |
||||||
1.6 |
agitator |
scraped |
||||||
Stirring coefficiency: |
Stirrer motor:2.2KW,Speed:0~63R/M; |
|||||||
1.7 |
Homogeneous Way |
Installation,internal circulation; |
||||||
Homogeneous |
Motor Power 7.5KW,Rotating speed 0-3600R/M |
|||||||
Processing |
Rotor and Stator in Wire cutting,assembled after polishing |
|||||||
1.8 |
sealing |
Adopting burgmann Machinery Seal,Japan NSK Rolling Bearing; |
||||||
1.9 |
polishing |
In&outside hygiene grades,conforming GMP standard |
||||||
