1.5kw 100L Emulsifying Toothpaste Making Machine Vacuum Homogenizer Mixer

Body Lotion Cosmetic Cream Emulsifying Toothpaste Making Machine Vacuum Homogenizer Mixer Emulsifier

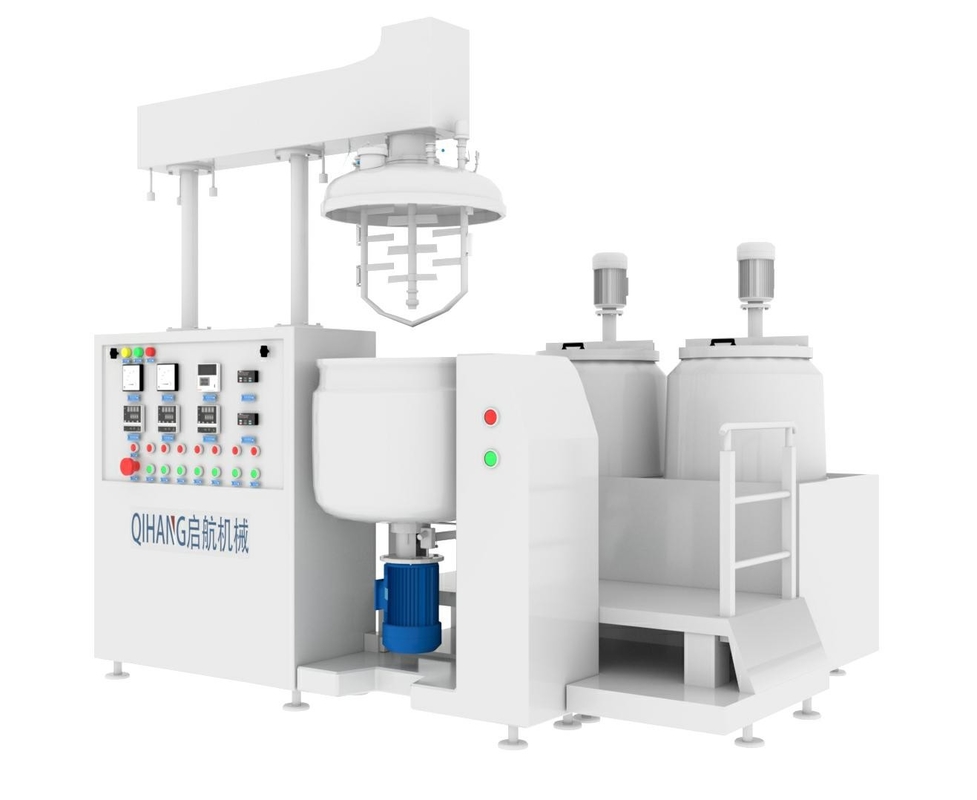

Introduction of theVacuum Homogenizing Emulsifying Machine:

Vacuum emulsifying machine, high shear homogenizer, cosmetic cream mixer means the material in a vacuum state, the use of high-shear emulsifier efficient, rapid and evenly distributed one phase or multiple phase to another phase, and each phase under normal circumstances (such as oil and water phase) are mutually exclusive.

Technical Parameters of theVacuum Homogenizing Emulsifying Machine:

Model	Main pot	Water pot	Oil pot	Main potpower		Hydraulic System	Vacuum pump power(Kw)
	Volume(L)			Wall scraping	Homogenizer
QHE-5L	5L			0.18	1.1	0.75	0.55
QHE-10L	10L	8	5	0.18	1.1	0.75	0.75
QHE-20L	20L	18	10	0.37	1.5	0.75	0.75
QHE-50L	50L	40	25	075	4-7.5	1.5	1.5
QHE-100L	100L	80	50	1.5	4-7.5	1.5	1.5
QHE-200L	200L	170	100	2.2	7.5-11	1.5	2.2
QHE-300L	300L	250	150	2.2	7.5-11	1.5	2.2
qhe - 500 l	500L	420	250	4	11	1.5	2.2
QHE-1000L	1000升	820	500	5.5	5	2.2	3
Remark: 1. For this model, the capacity can be 50L -10000L, normally we will advise you to choose steam heating when the capacity is more than 500L, cause steam heating is more fast than electronic heating. 2. For electronic heating, you can add water or conduct oil inside jeckets. However if you heating with conduct oil, there is no cooling. 3. Normally the products can be poured out from bottom outlet, but if you want it not cost too much time, you can connect a rotor pump to pump it out.

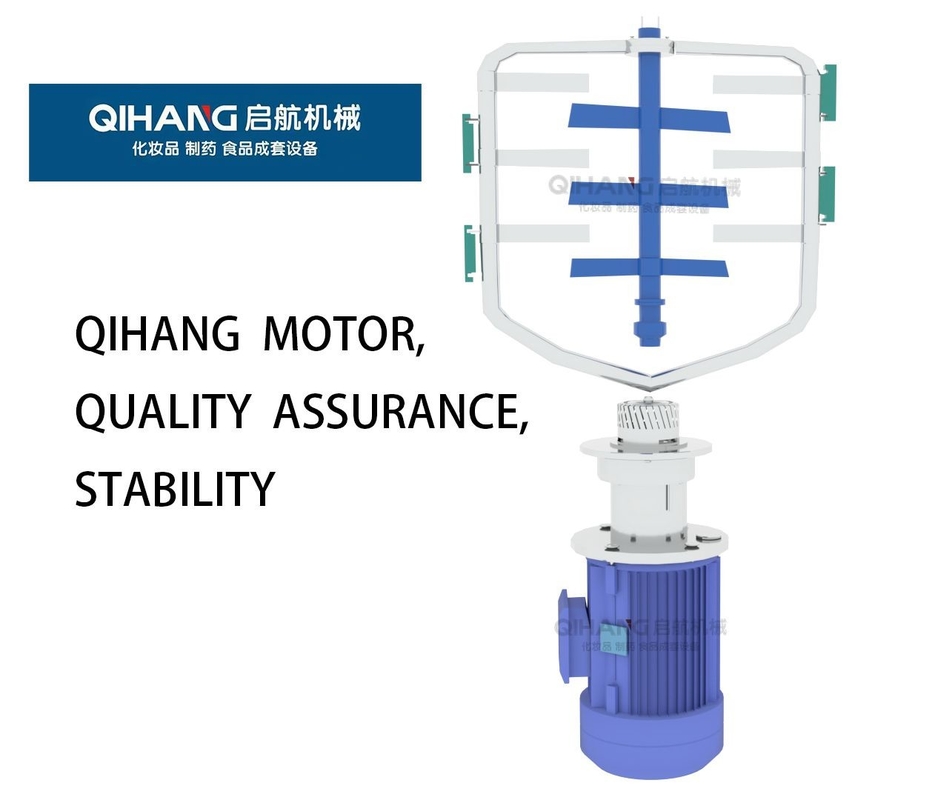

Types for the mixer

Type stirring blade were left to right:

single way mixing internal & external circulation, double way mixing internal & external circulation, single way mixing & internal circulation, double way mixing & internal circulation, single way mixing & external homogenizer, double way mixing & external homogenizer
